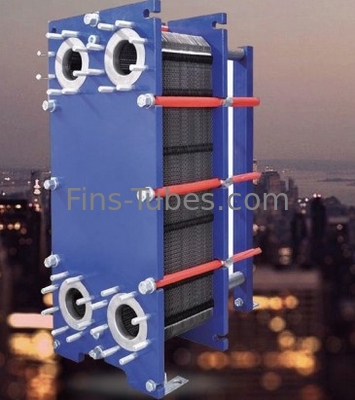

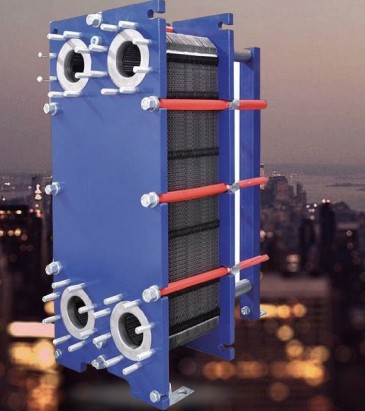

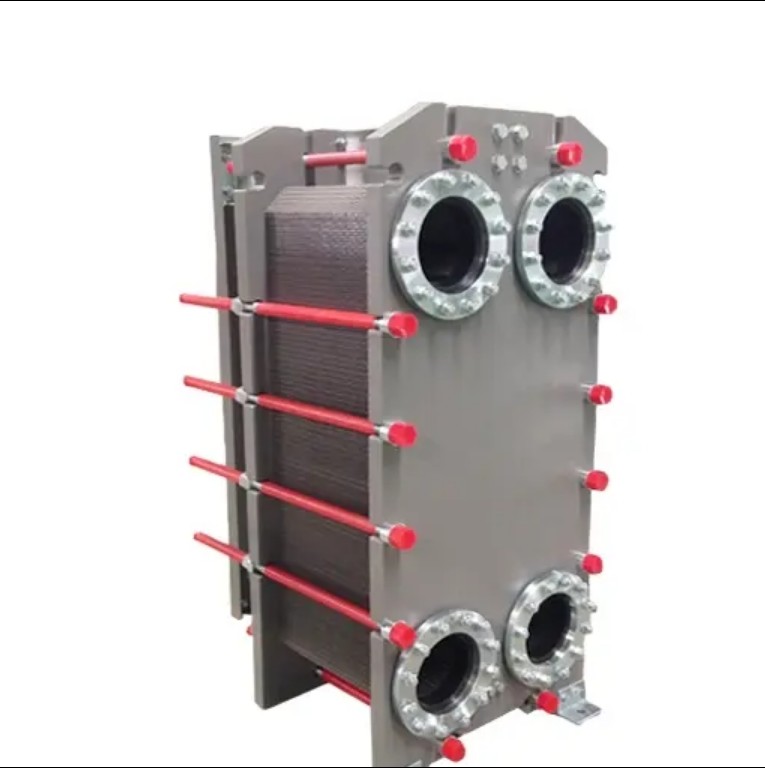

Plate Heat Exchanger Ideal Instrument For Exceptional Heat Transfer Efficacy
Product Description
DELLOK YONGHUI Plate Heat Exchanger: The Ideal Instrument for Exceptional Heat Transfer Efficacy
Introduction
The plate and shell heat exchanger represents an innovative and versatile solution in the field of heat transfer technology.
This type of heat exchanger is constructed with a set of thin, stamped plates that are assembled in a shell. The plates are designed with specific patterns and grooves that not only create channels for the fluid flow but also promote efficient heat exchange. The fluids, one hot and one cold, are directed through these channels in a counter-current or cross-flow manner.
The laser half-welded plate heat exchanger consists of alternating welded channels and conventional flow channels. Two plates are welded 180 degrees upside down to form a plate group, forming a welded runner; each plate group is sealed with a gasket, forming a removable conventional runner. The sensitive medium flows through the welded flow channel and the regular medium flows through the regular flow channel for heat exchange.
Laser half-welded plate heat exchanger is especially suitable for the evaporation and condensation of refrigerants such as ammonia and Freon, and it is also an ideal heat exchange equipment for the chemical industry and the general process heat exchange medium that produces corrosion to the gasket.
SPECIFICATION PARAMETER OF TYPE A SERIES
SELECTION CONDITIONS
Heat exchanger selection is very important,usually need to know the above parameters,if you are not clear about the conditions of use, please contact us, we will confirm the selection parameters with you.
According to the application parameters, we use software to select the type of heat exchanger you need.
ACCESSORIES-PLATES
PECULIARITY
Product Advantages
01HIGH HEAT TRANSFER COEFFICIENT
When the flowing medium in the plate group is low Reynolds number, turbulence can be formed, and the smooth plate surface is easy to generate dirt.
02HIGH HEAT RECOVERY
The heat transfer temperature difference is very low, which is very suitable for the recovery of low energy. The rate can be as high as about 90%.
03LOW RETENTION
Small flow path and small retention.Superior in handling heat-sensitive materials
04COMPACT STRUCTURE
Occupies less space. Under the same heat exchange conditions, the floor area of the plate heat exchanger is only 1/3-1/4 of the tube and shell heat exchanger. Disassembly does not require additional maintenance space.
05EASY MAINTENANCE
The plate design has no dead corner area, and can be cleaned chemically without disassembly.
FAQ:
Q1: How does the temperature difference affect the performance of a plate heat exchanger?
A: A larger temperature difference between the hot and cold fluids generally leads to a higher heat transfer rate. However, extreme temperature differences may cause thermal stress on the plates and gaskets, so it is important to operate within the recommended temperature range for the particular exchanger.
Q2: Are plate heat exchangers energy-efficient?
A: Yes, they are highly energy-efficient due to their high heat transfer coefficients. This means that less energy is required to achieve the desired heat transfer compared to some other types of heat exchangers, resulting in potential cost savings in heating, cooling, or other thermal processes.
