DELLOK High Frequency Welded Longitudinal Fin Tube Air Heater
About Us
DELLOK (YONGHUI RADIATING PIPE MANUFACTURING CO.,LTD.) was established in 2002, which is located in Jiangsu, China. After many years of development, the company now has 66 million yuan in fixed assets, more than 200 employees, and 33 technical staffs. We have 4 aluminum processing production lines, with the annual processing capacity of more than 20,000 tons; And we have 5 tube-drawing production lines; 47 fintube production lines, 1 imported production line from American with the brand of McElroy , with the annual production capacity of 12 million meters the above. Quality is the theme of eternal pursuit of winner -Production workshop- Meticulous works, standardized management system and systematic quality assurance are Dellok(YONGHUI)'s best commitment to quality. In Dellok(YONGHUI), the quality control is not only the detection of the final process, but throughout the entire production process. We implement a set of quality control and assurance systems. Each batch of pipes is sampled and tested, and records are kept as a quality guarantee for the final product.
Longitudinal Finned Tube Product Description:

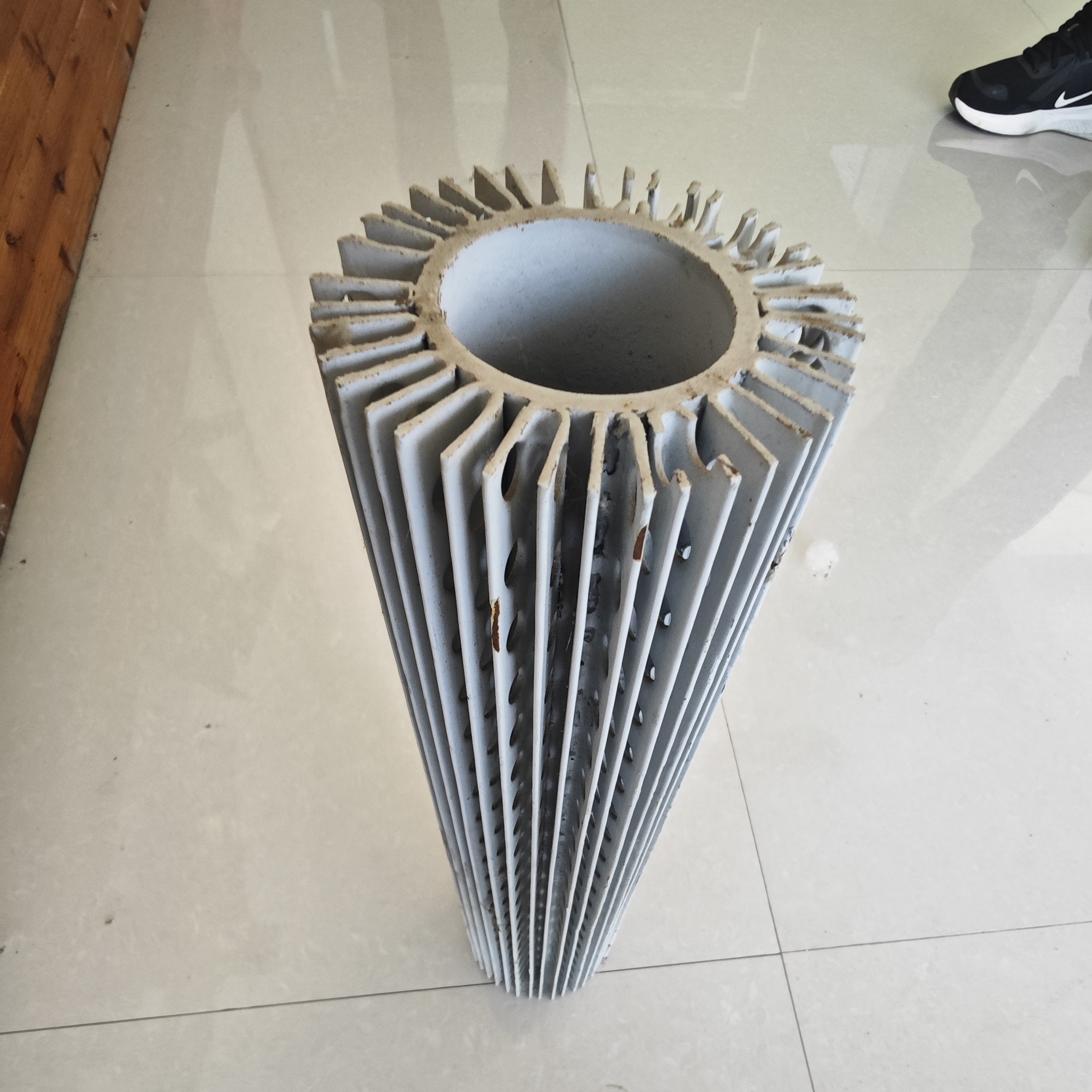

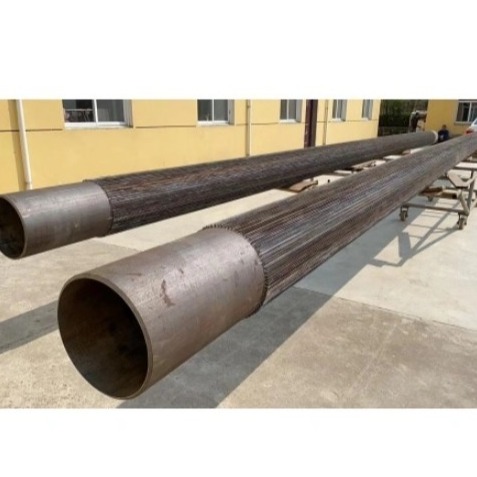

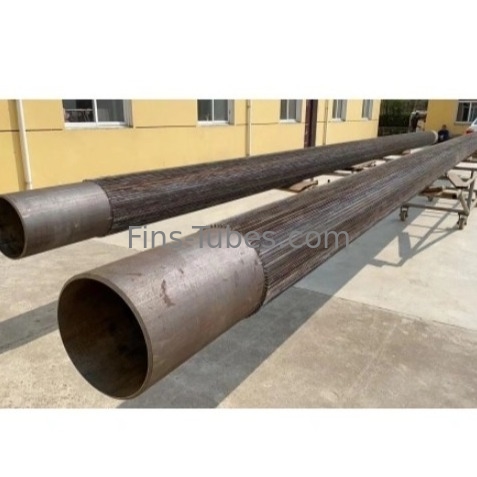

Longitudinal finned tubes are used to give a great performance in any heat transfer application, especially in petrochemical area. They are the heart of heat exchangers that use their effective characteristics.
Our finned tube is particularly efficient as the channels are welded on the external surface of the tube by means of resistance weld technique. Every channel is the result of a fin strip shaped into a U form (made by us), such that each leg of the U will form a fin. The number of fins will be always a multiple of four with a maximum number depending on the outside diameter of the tube and on the thermodynamic calculations promoted for a specific job.
Longitudinal Fin Tube Manufacturing Process:
The longitudinal fin tubes are welded onto the core plain tubes by resistance welding or welding with filler metal.
Longitudinal Fin Tube(Carbon Steel Welded Pipe) Advantages:
Provide 8 to 12 times the heat transfer area of bare tubes.
Are more efficient than bare tubes.
Provide smaller exchangers due to increased Heat Transfer area.
Often provide a more economical selection.
Fins can be "Cut & Twist" to increase shell side fluid turbulence and improve heat transfer.
Brown Fin Tube Properties:
Improve heat transfer efficiency in efficient space.
Reduces installation space on required heat transfer surfaces.
Reduce the cost of the equipment, and have a high operational reliability.
The pressure drop on the side of the tube is reduced and the operation cost is reduced.
The stiffness of steel tube is improved, and the seismic performance of steel tube is improved.
Enhance heat transfer, reduce flow resistance and metal consumption.
Longitudinal Finned Tube(Welded Steel Pipe) Applications:
We supply longitudinal finned tubes for:
double pipe heat exchangers
multi-tube heat exchangers
fire rated heaters
gas coolers
tank heaters
And we are able to accommodate the requirements of various industries, including oil, power, chemical, and petrochemical.
Longitudinal Finned Tube Specifications:
| Product Specification | ||
| Tube OD | 16~273 (mm) | 3/8”~10”(NPS) |
| Tube Wall Thk | 2.11~25.4 (mm) | 0.08”~1” |
| Tube Length | ≤12,000 (mm) | ≤39 ft |
| Fin Thk | 1.0~1.5 (mm) | 0.04”~0.06” |
| Fin Height | 5~25 (mm) | 0.2”~0.98” |
| Fin Pitch | 1U~36U | |
| Fin Type | “U”or“I/L” | |
| Material Combinations | ||
| Fin Material | C.S. (most common grade: Q235B) | |
| S.S. (most common grade are AISI 304, 316, 409, 410, 321,347) | ||
| A.S. | ||
| Tube Material | C.S. (most common grade: A106 Gr.B) | |
| S.S. (most common grade are TP304,316, 321, 347) | ||
| A.S. (most common grade are T/P5,9,11,22,91) | ||
Product Categories : Longitudinal Finned Tube
